04_PRODUCT_PAGE_Header_S300



Internal Hard Drive

S300

Always On, Always Watching





Icon_Surveillance

With surveillance systems, nothing but the best is good enough. The Toshiba 3.5-inch S300 is built to meet the highest demands. With support for up to 32 high-resolution surveillance video cameras simultaneously and up to 4 TB capacity, it brings everything into clear view. Each S300 is built with the highest-quality components and has passed rigorous tests to ensure 24/7 reliability and performance. That’s Toshiba quality you can trust under the harshest working conditions.

Use for:
• Network Video Recorders (NVR)
• Entry- and Mid-Range Surveillance NVR (SNVR) and SDVR Platforms
• Hybrid (analog and IP) SDVR Platforms





S300_Gallery_Images_03

  3.5″ SATA Hard Drive

  Up to 5400 RPM

   128 / 256 MB Buffer

    24/7 Operation

  Supports up to 64 Video Cameras

   High Reliability and Enhanced                                         Real-Time Performance

  Toshiba Dynamic Cache Technology

  Toshiba Stable Platter Technology

   High-Endurance Design

    3-year Warranty

  • S300_Gallery_Images_01
  • S300_Gallery_Images_02

6 TB     4 TB     2 TB     1 TB

RELENTLESS RELIABILITY

Reliability is a function of component quality and testing. The S300 takes it to a new level, using optimised components to deliver the clear detail from up to 64 video cameras at the same time. Rigorous testing provides performance you can trust day in, day out.

ATTENTION TO DETAIL

When it comes to those events where even the single frame counts, the S300 has been designed to record even the smallest detail. 24/7 reliability and high-performance ensure you will capture every detail to analyze your security footage at any time.

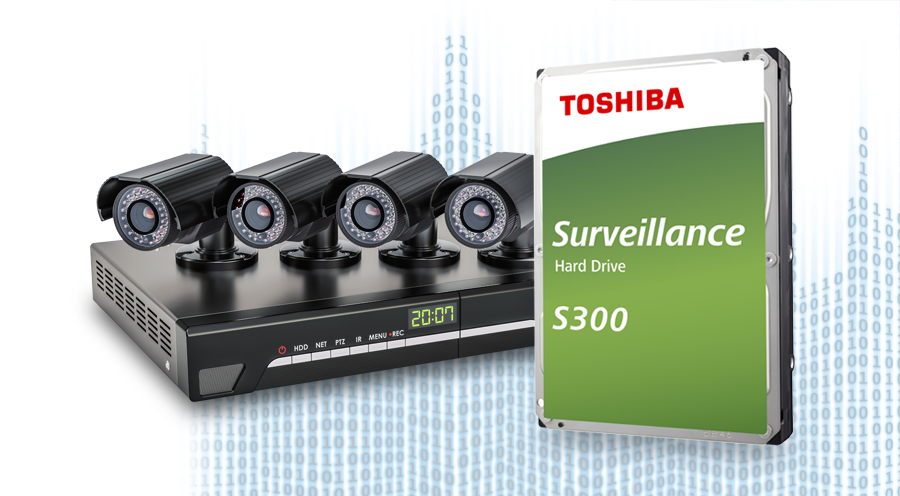

S300 | Surveillance Hard Drives

TOSHIBA Surveillance HDDs deliver high reliability, comfortable operability, temperature durability and – of course – large capacity.

DESIGNED AND TESTED FOR COMPATIBILITY

The S300 has been designed and tested to support up to 64 high resolution cameras, allowing flexible scalability for your security camera systems. Compatible with DVR, NVR platforms, video servers and video management systems for around-the-clock security, the surveillance never sleeps – so that you can.





toshiba-internal-hard-drive-s300-surveillance





toshiba-internal-hard-drive-s300-performance

SMART PERFORMANCE DELIVERS

The S300 is a smart performer. That’s because Toshiba’s Dynamic Cache Technology optimises read and write cycle cach allocation through buffer management and a special on-board cache algorithm.

INTEGRATED RV SENSORS

Regular hard disk drives without RV sensors can affect the performance of a multi-bay system by generating ‘knock-on’ vibration. The S300 ensures high reliability by minimising vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration – eliminating the possibility of ‘knock-on’ vibration in multi-bay surveillance systems.





toshiba-internal-hard-drive-s300-RV_Sensor





toshiba-internal-hard-drive-s300-endurance_reliability

HIGH ENDURANCE, HIGH RELIABILITY

The high-endurance, high-performance components of the S300 withstand harsh environments for superior reliability. High-temperature environments trigger optimized seek speed to support lower power consumption while automatically reducing noise and vibration emissions. Up to one million hour MTTF (Mean time to failure) and 180 TB per year workload rating provide peace of mind when operating security camera systems.

BUILT TO DELIVER, DESIGNED TO LAST

Toshiba is renowned the world over for 50 years of leading innovation – and the power behind its range of hard drives is no exception. Designed for high capacity and excellent performance, you can be sure that Toshiba’s wealth of experience in hard drives is at work in your storage system. A three year extended warranty is also included with the S300 for the ultimate peace of mind.





toshiba-internal-hard-drive-s300-warranty



Product Specifications

toshiba-internal-hard-drives-dimension-x300
Basic Specifications
Form factor 3.5-inch
Interface SATA 6.0 Gbit/s
Number of cameras supported Up to 64 (6 TB) Up to 32 (2 TB - 4 TB) Up to 16 (1 TB)
Drive bays supported Up to 8 (2 TB - 6 TB) Up to 4 (1 TB)
Rotational Vibration (RV) Sensors Yes
Advanced Format (AF) Yes
RoHS compatible Yes
Halogen Free Yes
Shock Sensor Yes
Performance
Recording Technology CMR (Conventional Magnetic Recording) / SMR (Shingled Magnetic Recording Technology)
Rotational speed 5400 RPM (2 TB - 6 TB) 5700 RPM (1 TB)
Max. data transfer speed (sustained) 176.4 MB/s (2 TB - 6 TB) 157 MB/s Typ.
Buffer size 128 MB (2 TB - 4 TB) 256 MB (4 TB - 6 TB)
Average latency 5.56 ms (2 TB - 6 TB)
Native Command Queing (NCQ) Supported
Reliability
Workloads 180 TB/year (2 TB - 6 TB) 72 TB/year (1 TB)
MTTF 1.000.000 hours (2 TB - 6 TB)
Unrecoverable error rate 1 per 10E14 bits read
24/7 operation Yes
Load / Unload Cycle 600.000 (2 TB - 6 TB)
Power Management
Supply voltage 5V DC ±5%; 12V DC ±10%
Consumption (operating) 4.48 W typ. (6 TB), 4.11 W typ. (4 TB), 4.01 W typ. (2 TB) 5.70 W typ. (1 TB)
Consumption - Active Idle 2.69 W typ. (6 TB), 2.36 W typ. (4 TB), 2.08 W typ. (2 TB) 3.00 W typ. (4 TB)
Environmental
Temperature (operating / non-operating) 0 - 60° C / -40 - 70° C
Vibration (operating) 4.90 m/s2 { 0.50 G } ( 5 to 350 Hz ) 2.45 m/s2 { 0.25 G } ( 350 to 500 Hz) (2 - 6 TB) { 0.67 G } (5 to 500 Hz) (1 TB)
Vibration (non-operating) 29.4 m/s2 { 3.0 G } ( 5 to 500 Hz ) (2 TB - 6TB) 10.2 m/s2 { 1.04 G } (2 to 200 Hz) (1TB)
Shock (operating) 686 m/s2 { 70 G } ( 2 ms duration )
Shock (non-operating) 2940 m/s2 { 300 G } ( 2 ms duration ) (6 TB), 3430 m/s2 { 350 G } ( 2 ms duration ) (1 TB - 4 TB)
Acoustics (idle mode) 24 dB typ. (6 TB), 22 dB typ. (4 TB), 21 dB typ. (2 TB), 19 dB typ. (1 TB)
Physical
Dimensions 147 (L) x 101.85 (W) x 26.1 (H) mm
Weight (approx.) 680 g max. (6 TB), 650 g max. (4 TB), 440 g max. (2 TB), 450 g max. (1 TB)
Limited warranty 3 years

Product Range

Series Part number Capacity Buffer Size Recording Type No. of Camera Supported
DT02-V HDWT860UZSVA 6TB 256MB SMR Up to 64
DT02-V HDWT840UZSVA 4TB 256MB SMR Up to 64
MD04-V HDWT140UZSVA 4TB 128MB CMR Up to 32
DT02-V HDWT740UZSVA 4TB 128MB SMR Up to 32
DT02-V HDWT720UZSVA 2TB 128MB SMR Up to 32
DT01-V HDWV110UZSVA 1TB 64MB CMR Up to 32
         Product Overview (Click to download)    Product Overview (Click on PDF to download)
